Max Electric Products

Specifications

Name Tap Off Box
Rating 100A, 125A, 160A, 200A, 225A, 250A
Specs (LxWxH) 450x230x230 (mm)
Name Tap Off Box
Rating 400A
Specs (LxWxH) 700x350x300 (mm)
Name Tap Off Box
Rating 630A
Specs (LxWxH) 800x350x300 (mm)

Specifications

Name Floor Flange
Rating 1000A-2000A

Specifications

Name Vertical Srping Hanger
Rating 1000A-2000A

Specifications

Name Wall Flange
Rating 1000A-2000A

Specifications

Aluminum Mylar

Name Terminal Cover
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

Aluminum Epoxy

Name Terminal Cover
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

Copper Mylar

Name Terminal Cover
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

Copper Epoxy

Name Terminal Cover
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

Specifications

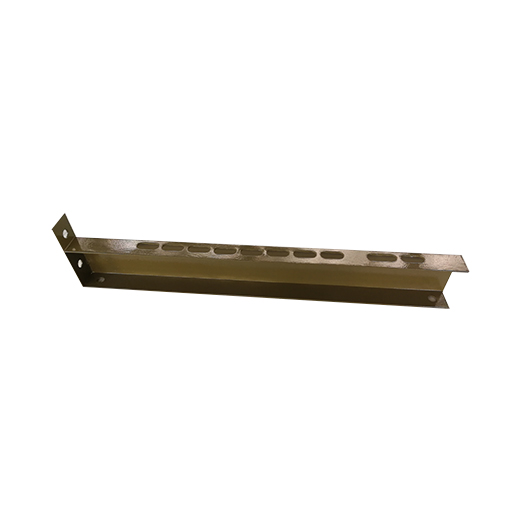

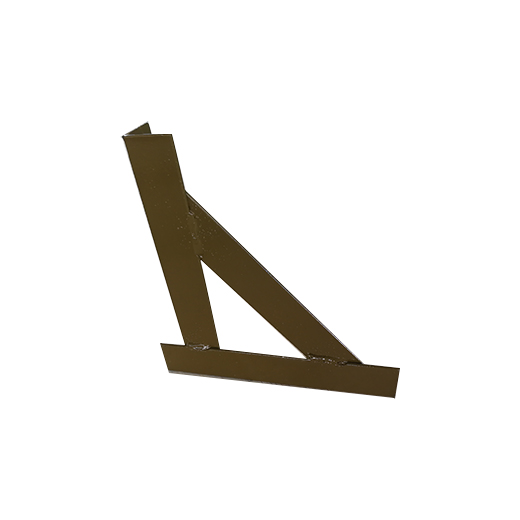

Name Horizontal Fixing Hanger
Rating 1000A-2000A

Specifications

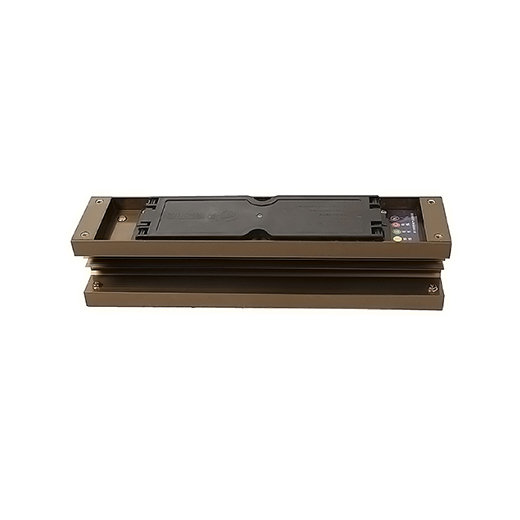

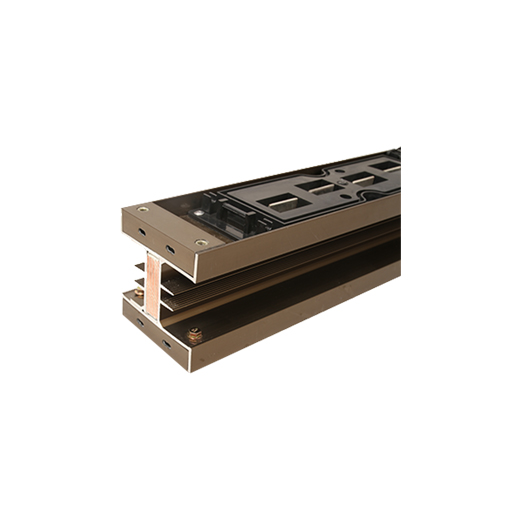

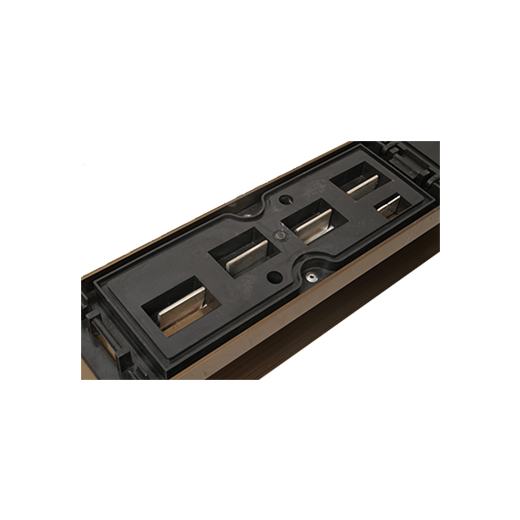

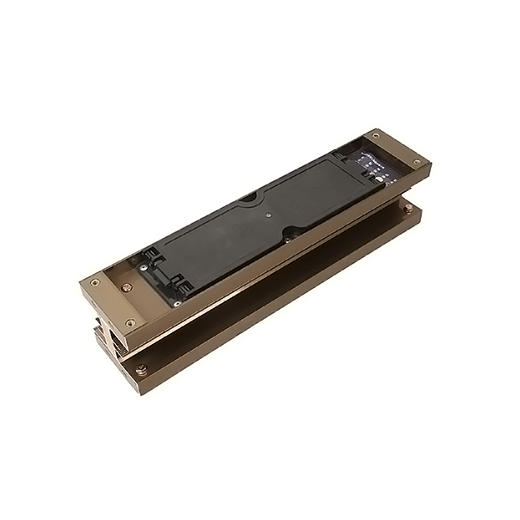

Name Plug-in Hole
Material Aluminum, Copper
Rating 1000A-2000A

Specifications

Aluminum Mylar

Name Flange End
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

Aluminum Epoxy

Name Flange End
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

Copper Mylar

Name Flange End
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

Copper Epoxy

Name Flange End
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

Specifications

Aluminum Mylar

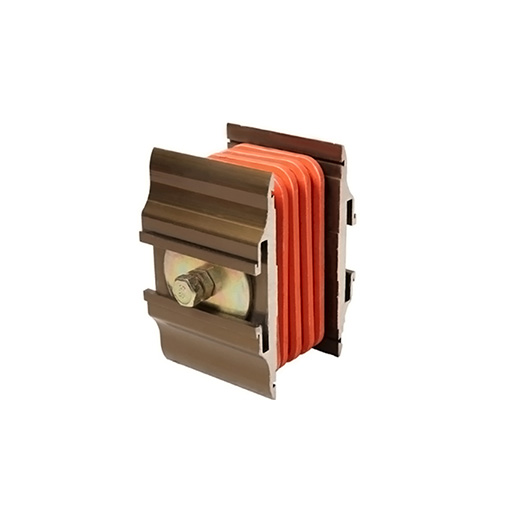

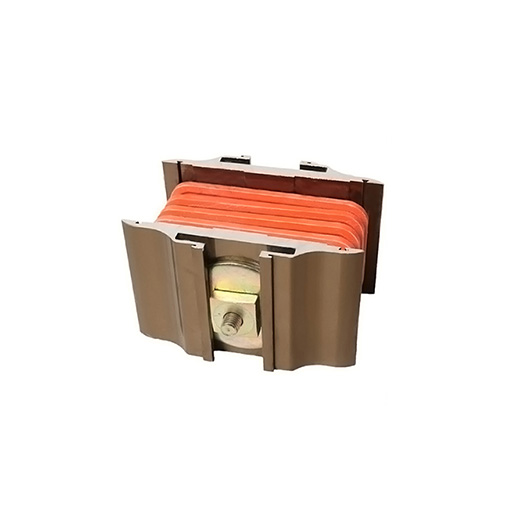

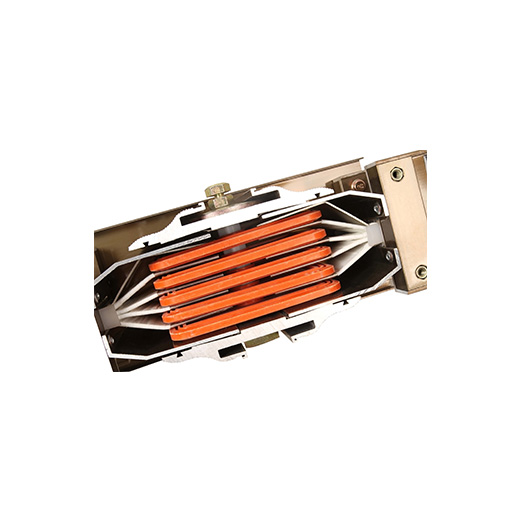

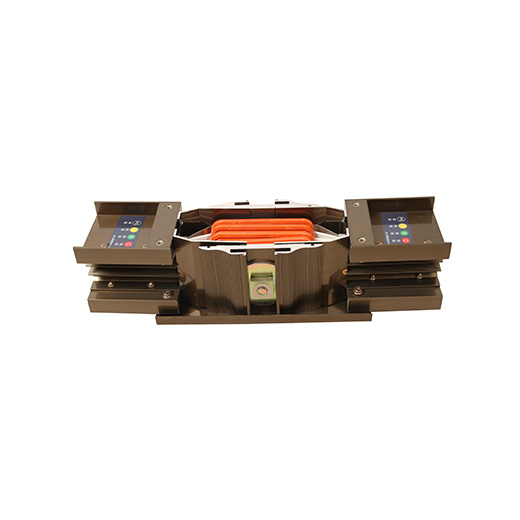

Name Joint
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

Aluminum Epoxy

Name Joint
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

Copper Mylar

Name Joint
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

Copper Epoxy

Name Joint
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

Specifications

Aluminum Mylar

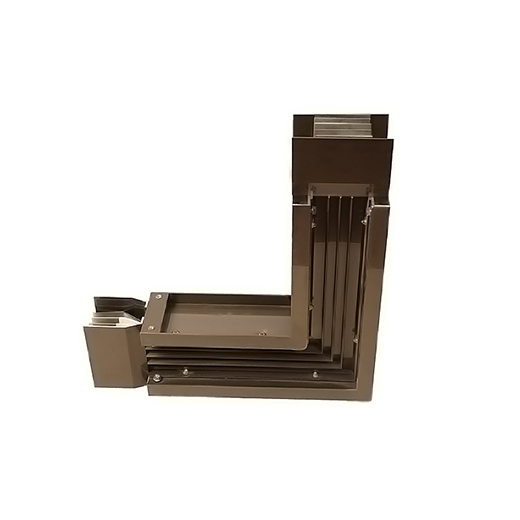

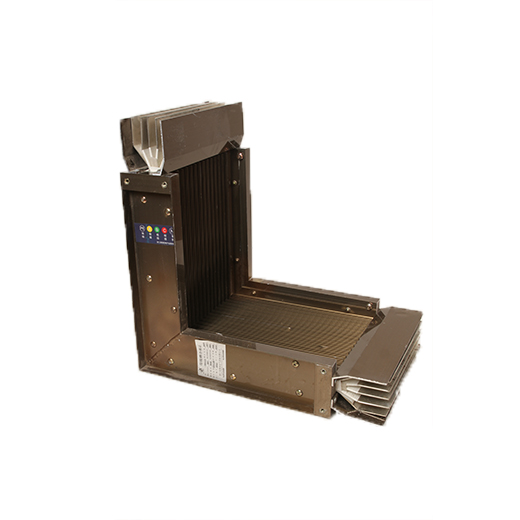

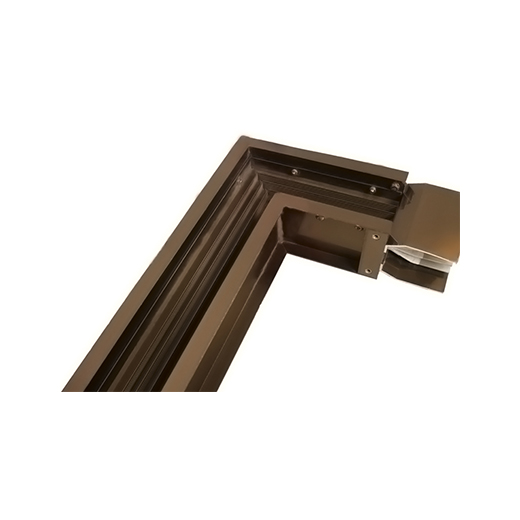

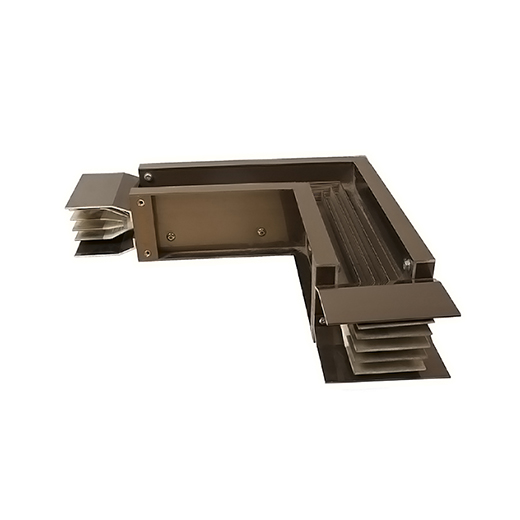

Name Offset Elbow
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
500x500x500 (mm)

Aluminum Epoxy

Name Offset Elbow
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
500x500x500 (mm)

Copper Mylar

Name Offset Elbow
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
500x500x500 (mm)

Copper Epoxy

Name Offset Elbow
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
500x500x500 (mm)

Specifications

Aluminum Mylar

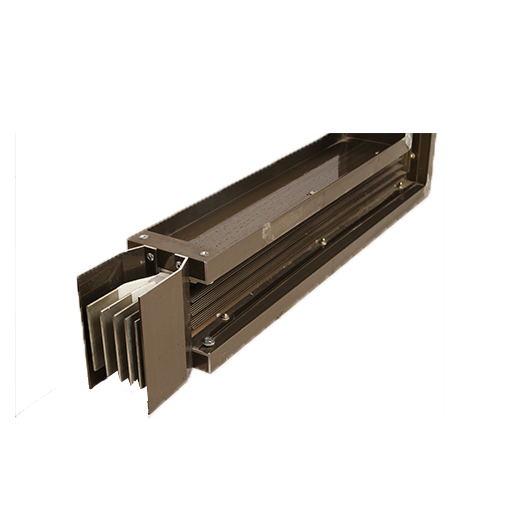

Name Straight Part
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 250A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x85 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 315A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x85 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 400A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x85 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 500A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x95 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 630A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x105 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 800A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x125 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 1000A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x150 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 1250A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x185 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 1600A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x230 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 2000A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x265 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 2500A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x305 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 3200A (double row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x420 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 4000A (double row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x420 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 5000A (double row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x560 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x815 (mm)

Aluminum Epoxy

Name Straight Part
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 250A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x85 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 315A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x85 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 400A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x85 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 500A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x95 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 630A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x105 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 800A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x125 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 1000A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x150 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 1250A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x185 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 1600A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x230 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 2000A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x265 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 2500A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x305 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 3200A (double row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x420 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 4000A (double row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x480 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 5000A (double row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x560 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x815 (mm)

Copper Mylar

Name Straight Part
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 400A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x85 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 500A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x95 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 630A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x105 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 800A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x125 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 1000A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x150 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 1250A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x185 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 1600A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x230 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 2000A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x265 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 2500A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x305 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 3200A (double row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x420 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 4000A (double row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x480 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 5000A (double row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x560 (mm)
Name Straight Part
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x815 (mm)

Copper Epoxy

Name Straight Part
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 400A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x85 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 500A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x95 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 630A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x105 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 800A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x125 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 1000A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x150 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 1250A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x185 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 1600A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x230 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 2000A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x265 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 2500A
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x305 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 3200A (double row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x420 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 4000A (double row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x480 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 5000A (double row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x560 (mm)
Name Straight Part
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G
105x815 (mm)

Specifications

Aluminum Mylar

Name Elbow
IP IP54/IP55, IP65
Material Aluminum
Insulation Mylar
Rating 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

500x500 (mm)

Aluminum Epoxy

Name Elbow
IP IP54/IP55, IP65, IP68
Material Aluminum
Insulation Epoxy
Rating 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

500x500 (mm)

Copper Mylar

Name Elbow
IP IP54/IP55, IP65
Material Copper
Insulation Mylar
Rating 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

500x500 (mm)

Copper Epoxy

Name Elbow
IP IP54/IP55, IP65, IP68
Material Copper
Insulation Epoxy
Rating 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A, 2000A, 2500A, 3200A (double row), 4000A (double row), 5000A (double row), 6300A (triple row)
Specs 3W3P,3P3W+1/2G, 3P4W, 3P4W+1/2G, 3P4W+200%N, 3P4W+200%N+1/2G, 3P4W+25%G+25%G, 3P4W+100%G

500x500 (mm)
